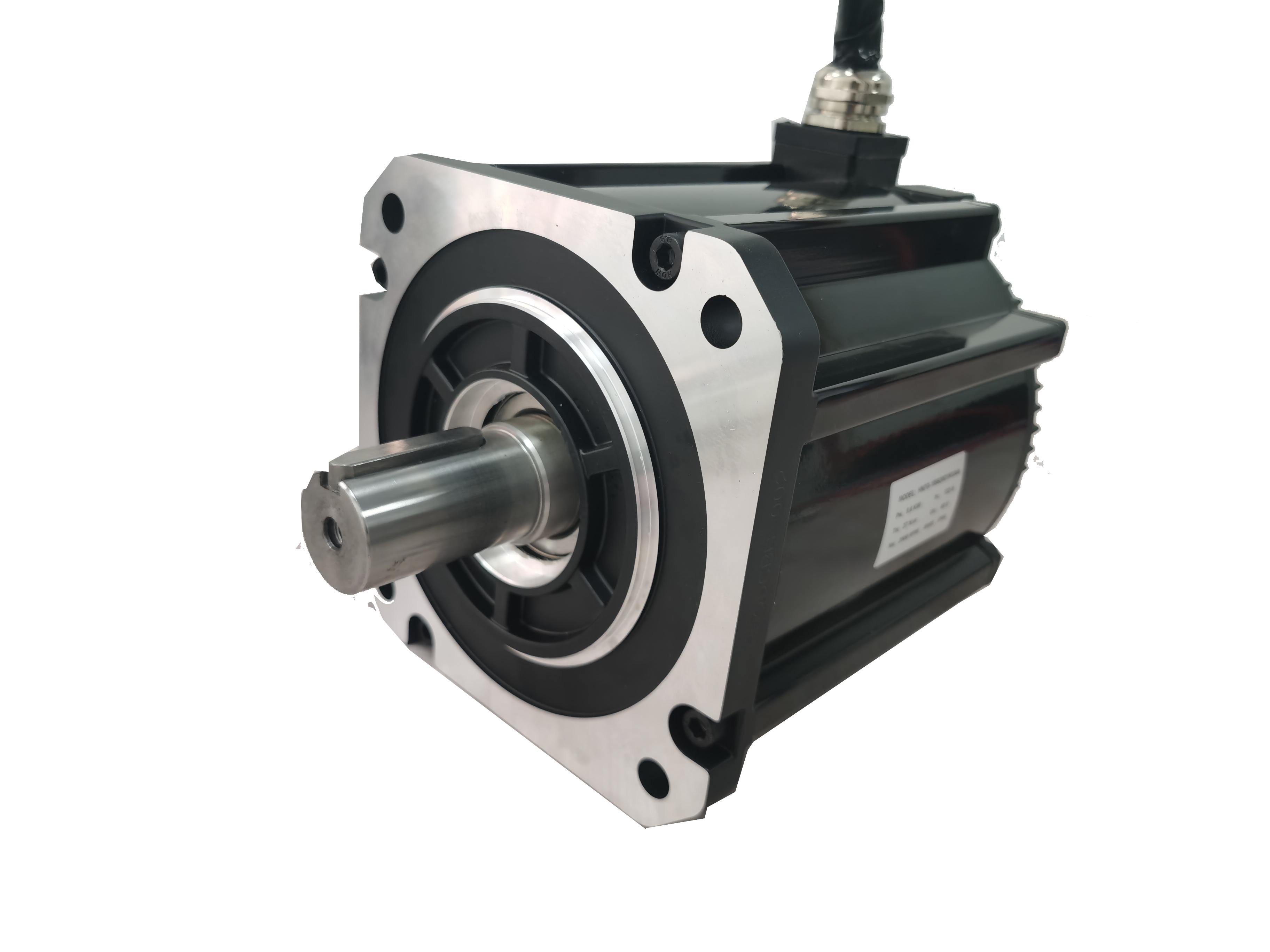

防爆伺服電機
防爆等級: Ex db IIC T5 Gb; Ex tb IIIC T95℃ Db

功率范圍:100W-10KW

扭矩范圍:0.32-64NM

防爆等級: Ex db IIC T5 Gb; Ex tb IIIC T95℃ Db

電壓范圍：直流 24V/48V/72V/96V/110V/310V/560V，交流220VAC/380VAC

編碼器類型：增量/韋根多圈/多摩川協議多圈/機械多圈/旋轉變壓器

產品參數

TYEX防爆伺服電機選型指南

品名

機座號

額定功率

額定轉速
(RPM)

額定扭矩
(NM)

電壓(VDC)

抱閘

型號

防爆等級

防爆伺服電機

65

100W

3000

0.32

24/48/72/96/110/310/560



TY65EX-01030④⑤



Ex db IIC T5 Gb;
Ex tb IIIC T95℃ Db

防爆伺服電機

100W

3000

0.32

24/48/72/96/110/310/560

R

TY65EX-01030④⑤-Z

防爆伺服電機

200W

3000

0.64

24/48/72/96/110/310/560



TY65EX-02030④⑤

防爆伺服電機

200W

3000

0.64

24/48/72/96/110/310/560

R

TY65EX-02030④⑤-Z

防爆伺服電機

400W

3000

1.28

24/48/72/96/110/310/560



TY65EX-04030④⑤

防爆伺服電機

400W

3000

1.28

24/48/72/96/110/310/560

R

TY65EX-04030④⑤-Z

防爆伺服電機

600W

3000

1.9

24/48/72/96/110/310/560



TY65EX-06030④⑤

防爆伺服電機

600W

3000

1.9

24/48/72/96/110/310/560

R

TY65EX-06030④⑤-Z

防爆伺服電機

90

400W

3000

1.28

24/48/72/96/110/310/560



TY90EX-04030④⑤

防爆伺服電機

400W

3000

1.28

24/48/72/96/110/310/560

R

TY90EX-04030④⑤-Z

防爆伺服電機

750W

3000

2.38

24/48/72/96/110/310/560



TY90EX-07530④⑤

防爆伺服電機

750W

3000

2.38

24/48/72/96/110/310/560

R

TY90EX-07530④⑤-Z

防爆伺服電機

1000W

3000

3.2

24/48/72/96/110/310/560



TY90EX-10030④⑤

防爆伺服電機

1000W

3000

3.2

24/48/72/96/110/310/560

R

TY90EX-10030④⑤-Z

防爆伺服電機

130

1.5KW

3000

4.77

24/48/72/96/110/310/560



TY130EX-15030④⑤

防爆伺服電機

1.5KW

3000

4.77

24/48/72/96/110/310/560

R

TY130EX-15030④⑤-Z

Ex db IIC T4 Gb;
Ex tb IIIC T130℃ Db

防爆伺服電機

2.0KW

3000

9.5

48/72/96/110/310/560



TY130EX-20020④⑤

防爆伺服電機

2.0KW

3000

9.5

48/72/96/110/310/560

R

TY130SV-20020④⑤-Z

防爆伺服電機

3KW

3000

9.5

48/72/96/110/310/560



TY130EX-30030④⑤

防爆伺服電機

3KW

3000

9.5

48/72/96/110/310/560

R

TY130EX-30030④⑤-Z

防爆伺服電機

3KW

2000

14.3

48/72/96/110/310/560



TY130EX-30020④⑤

防爆伺服電機

3KW

2000

14.3

48/72/96/110/310/560

R

TY130EX-30020④⑤-Z

防爆伺服電機

3.2KW

1500

19.5

48/72/96/110/310/560



TY130EX-32015④⑤

防爆伺服電機

3.2KW

1500

19.5

48/72/96/110/310/560

R

TY130SV-32015④⑤-Z

防爆伺服電機

180

4KW

2000

19.5

48/72/96/110/310/560



TY180EX-40020④⑤

防爆伺服電機

4KW

2000

19.5

48/72/96/110/310/560

R

TY180EX-40020④⑤-Z

防爆伺服電機

4.2KW

1500

27

48/72/96/110/310/560



TY180EX-42015④⑤

防爆伺服電機

4.2KW

1500

27

48/72/96/110/310/560

R

TY180EX-42015④⑤-Z

防爆伺服電機

5KW

2500

19.5

48/72/96/110/310/560



TY180EX-50025④⑤

防爆伺服電機

5KW

2500

19.5

48/72/96/110/310/560

R

TY180EX-50025④⑤-Z

防爆伺服電機

5.5KW

1500

35

48/72/96/110/310/560



TY180EX-55015④⑤

防爆伺服電機

5.5KW

1500

35

48/72/96/110/310/560

R

TY180EX-55015④⑤-Z

防爆伺服電機

5.7KW

2000

27

48/72/96/110/310/560



TY180EX-57020④⑤

防爆伺服電機

5.7KW

2000

27

48/72/96/110/310/560

R

TY180EX-57020④⑤-Z

防爆伺服電機

7.5KW

1500

48

48/72/96/110/310/560



TY180EX-75015④⑤

防爆伺服電機

7.5KW

1500

48

48/72/96/110/310/560

R

TY180EX-75015④⑤-Z

防爆伺服電機

10KW

2000

48

48/72/96/110/310/560



TY180EX-100020④⑤

防爆伺服電機

10KW

2000

48

48/72/96/110/310/560

R

TY180EX-100020④⑤-Z

防爆伺服電機

10KW

1500

64

48/72/96/110/310/560



TY180EX-100015④⑤

防爆伺服電機

10KW

1500

64

48/72/96/110/310/560

R

TY180EX-100015④⑤-Z

備注:
④代表電壓:  A:24VDC B:48VDC C:72VDC D:310VDC(220VAC) E:560VDC(380VAC) F:96VDC G:110VDC
⑤代表編碼器:A:增量磁編 B:多摩川協議多圈絕對值 C：Postial多圈絕對值 D：機械多圈絕對值 E：增量光編 F：旋轉變壓器
